This cookbook example will walk you through the steps to migrate the sample database MF_PERSONNEL from Oracle Rdb to Mimer SQL. This will all take place on one single IA-64 machine, i.e., Mimer SQL will be installed alongside Rdb on the same server.
There are a few requisites that need to be fulfilled on the IA-64 server before we can start:
- Mimer SQL downloaded from Mimer SQL Developer site and installed according to the instructions in the Mimer SQL OpenVMS Guide
- OpenJDK 8 for OpenVMS
- JDBC drivers for Oracle Rdb
Procedure
Step 1 Create a new Mimer SQL database
Create a directory on the disk where the database should be stored
$ CREATE /DIR SYS$SYSDEVICE:[PERSONNEL]
Edit the file SQLHOSTS and add a new local entry for the database. Go to the section “local” and add a name for the database, followed by the full path to the directory just created. In this example will the database be called “PERSONNEL” with a path “SYS$SYSDEVICE:[PERSONNEL]”, so the entry in SQLHOSTS will be:
PERSONNEL SYS$SYSDEVICE:[PERSONNEL]
Run the command SDBGEN to create an empty database:
$ SDBGEN PERSONNEL
Accept all defaults and use “SYSADM” as password for the SYSADM user.
Finally start the Mimer SQL server for this database and make it available for the current session:
$ DEFINE MIMER_DATABASE PERSONNEL $ MIMCONTROL /START
At this stage is Mimer SQL running with a newly created, empty dabase named PERSONNEL. This can be verified by logging into the database:
$ bsql Mimer SQL Command Line Utility Version 11.0.9F Copyright (C) Mimer Information Technology AB. All rights reserved. Username: SYSADM Password: SQL>exit; $
Step 2 Prepare for migration
To install the Mimer SQL Rdb migration package, go to Mimer SQL Rdb migration on GitHub, click the green button marked “<> Code”, and select “Download Zip”. Transfer the resulting zip file to the OpenVMS system and unpack.
Once done, do the following to set up the Java classpath for the Mimer SQL data copy program:
$ DEFINE JAVA$CLASSPATH MIMER$LIB:MIMJDBC3.JAR, RDB$JDBC_HOME:RDBNATIVEV8.JAR, SYS$DISK:[]MIMERJCOPY.JAR
The last thing needed is to pick a username for a user in the Mimer SQL database, a user who will be the owner of the schema and the migrated data. This username is later passed, together with a selected password, to the migration scripts which will create this user during the migration process.
In this example will this user will be called MIGRATEUSER with the password MIGRATEPASSWD
Step 3 Configure JDBC
For the purposes of this cookbook, only two items are needed for the JDBC configuration:
- Data source
- Data target
This configuration is provided to the Mimer SQL Rdb Migration Toolkit by editing the following properties in the the file jdbc.properties:
- source.url – the JDBC URL for where Rdb’s MF_PERSONNEL is stored
- target.url – in this example, jdbc:mimer://localhost:1360/personnel
Step 4 Migrate the schema from Rdb
The source schema is migrated using the DCL command file UNLOAD_RDB.COM. This command file takes two parameters: the Rdb database schema to export, and the name of the corresponding target schema in Mimer SQL.
In this example, the source database is MF_PERSONNEL and the target schema is PERSON, resulting in the following unload command:
$ @UNLOAD_RDB <path to MF_PERSONNEL> PERSON
Step 5 Migrate data from Rdb into Mimer SQL
The entire migration is handled by a single DCL command file, LOAD_MIMER.COM, which takes four parameters:
- the SYSADM password, defined during database creation in step 1 (set to “SYSADM”)
- the target schema (“PERSON”)
- the Mimer SQL username for the schema owner (“MIGRATEUSER”)
- the corresponding Mimer SQL password (“MIGRATEPASSWD”)
During the migration, the script creates the specified Mimer SQL user, assigns ownership of the target schema, creates the schema itself, and then loads the data from Rdb into Mimer SQL.
The resulting command is therefore:
$ @LOAD_MIMER SYSADM PERSON MIGRATEUSER MIGRATEPASSWD
Step 6 Verification
Enter the Mimer SQL command line utility, BSQL, and login as MIGRATEUSER.
$ bsql Mimer SQL Command Line Utility Version 11.0.9F Copyright (C) Mimer Information Technology AB. All rights reserved. Username: MIGRATEUSER Password: SQL>select * from person.colleges; COLLEGE_CODE COLLEGE_NAME CITY STATE POSTAL_CODE ============ ========================= ==================== ===== =========== AU American University Washington DC 20016 BATE Bates College Lewiston ME 04240 BOWD Bowdoin College Brunswick ME 04011 CALT Cal. Institute of Tech. Pasadena CA 91125 COLB Colby College Waterville ME 04901 DREW Drew University Madison NJ 07940 FLU University of Florida Gainesville FL 32601 HVDU Harvard University Cambridge MA 02138 MIT Mass. Institute of Tech. Cambridge MA 02139 PRDU Purdue University West Lafayette IN 47907 QUIN Quinnipiac College Hamden CT 06518 STAN Stanford University Stanford CA 94305 UME University of Maine Orono ME 04473 USCA U. of Southern California Los Angeles CA 92037 YALE Yale University New Haven CT 06520 15 rows found SQL>exit; $

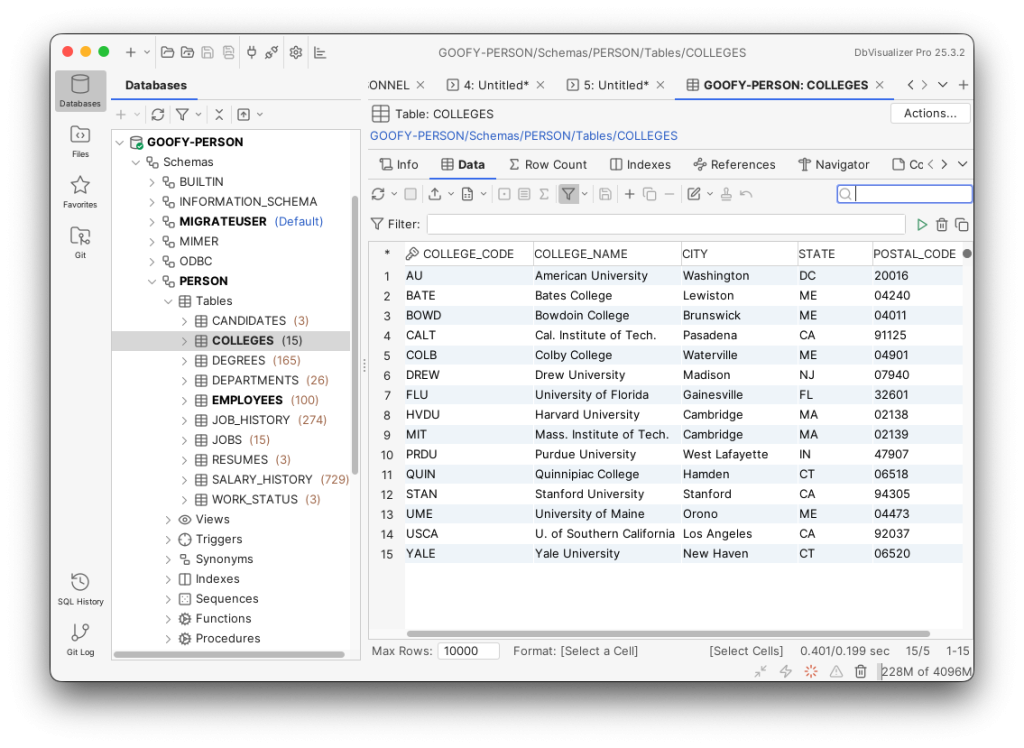

It is also possible to access the Mimer SQL database remotely. The image below shows the same table as above, accessed from a macOS computer using JDBC and the DbVisualizer application.
